Executive Summary

High Bandwidth Memory (HBM) is a revolutionary 3D-stacked DRAM technology that breaks through the limits of traditional DDR (Double Data Rate) SDRAM. Whereas DDR memory chips are mounted flat on the motherboard or on DIMM modules with relatively narrow buses, HBM stacks multiple thin DRAM dies vertically and interfaces them via thousands of through-silicon vias (TSVs) to achieve an ultra-wide bus (e.g. 1024–2048 bits). This “wide, slow, and stacked” approach delivers hundreds of gigabytes per second (GB/s) of bandwidth per stack at relatively low clock rates (^[1]) (^[2]). In practical terms, a single HBM3 stack can exceed 800–819 GB/s, while multi-stack GPUs or accelerators reach multiple terabytes per second (e.g. 5–6 TB/s) (^[3]). By contrast, the latest DDR5 DIMMs (up to DDR5-8800) top out around 64–70 GB/s per DIMM (^[4]) (^[5]).

This report provides a deep technical analysis of how HBM works, its unique architecture and evolution (HBM1 through HBM3/3E and beyond), and how it compares in every aspect to DDR SDRAM (DDR3/4/5). We cover historical context (the “memory wall”), the motivations behind HBM’s development, and detailed design principles (stacking, TSVs, interposers, “wide bus” paradigm). Key differences are examined: bandwidth (HBM’s aggregate and per-pin rates versus DDR’s narrower, higher-frequency buses), capacity (HBM’s smaller per-stack capacities vs DDR’s growing DIMM sizes), power and energy efficiency (HBM’s lower energy/bit and shorter interconnects), latency, packaging (2.5D/3D integration vs PCBs), cost and manufacturability. We include tables summarizing specification comparisons (e.g. HBM vs DDR5) and performance data. Case studies illustrate real-world use: HPC & AI (AMD Instinct, NVIDIA A100/H100, Intel Xeon with HBM) and how HBM accelerated those systems. We incorporate data and expert analysis (e.g. BittWare FPGA study, AnandTech and NVIDIA docs).

Our findings confirm that HBM dramatically increases memory bandwidth density and alleviates memory-bottleneck bottlenecks in GPUs/accelerators, at the expense of capacity and cost. While DDR remains the cost-efficient mainstream memory for general computing, HBM is becoming critical for high-performance domains. Future trends (HBM3E/4, hybrid memory) are discussed. All claims are supported by technical sources (^[6]) (^[2]) (^[7]).

Introduction and Background

Modern computing is increasingly limited by memory bandwidth. Processor and accelerator designs have advanced explosively (more cores, higher clock, new matrix units, etc.), but feeding data to those compute units has not scaled equally. Traditional DRAM (DDR SDRAM) improvements have historically come from higher clock rates and more channels. However, by the 2010s, conventional DDR (including GDDR in GPUs) was hitting diminishing returns: ever-faster clock frequencies require more power and suffer signal integrity issues on long traces. Meanwhile, applications in high-performance computing (HPC), scientific simulation, big data, and especially AI/ML were demanding ever-larger “tensors” to be accessed in real time, stressing the so-called memory wall. As a result, memory designs shifted towards more parallelism and closer integration to the processor.

High Bandwidth Memory (HBM) emerged around 2013–2015 as a response to this memory bottleneck (^[1]) (^[8]). Pioneered by industry (initially SK Hynix with AMD), HBM revolutionized DRAM by stacking multiple DRAM dies vertically and placing them very close to the CPU/GPU on a silicon interposer (a 2.5D package). This enabled extremely wide datapaths (thousands of bits) at moderate per-pin speeds, delivering bandwidths far beyond what DDR’s flat 2D design could provide (^[1]) (^[2]). By stacking (3D) and using Through-Silicon Vias (TSVs) for vertical signal connections, HBM achieves terabit-scale aggregate bandwidth with lower energy per bit. In contrast, DDR modules have stayed in planar form (chips on PCBs), and improvements rely on faster clocks and more DIMM sockets.

DDR (Double Data Rate) SDRAM itself began in the late 1990s (DDR1 around 2000), evolving through DDR2, DDR3, DDR4, and now DDR5. Each generation roughly doubles throughput per-pin, but real-world systems often use multiple modules and channels to approach system bandwidth needs. By 2020–2025, JEDEC DDR5 reached 6400–8400 MT/s (mega-transfers/sec) per pin and was extended to 8800 MT/s in 2024 (^[5]), yielding ∼64–70 GB/s per 64-bit DIMM. Even with 8-channel controllers, total DDR bandwidth tops out at a few hundred GB/s. In parallel, GDDR for graphics (a variant of DDR) improved similarly to around 18–20 Gb/s per pin (in GDDR6X) with 256-bit or 384-bit busses offering ~800 GB/s on a graphics card (^[4]).

HBM first appeared commercially around 2015 (AMD’s Radeon Fury X GPU with HBM1). HBM2 followed (2016), offering more capacity and speed. HBM2E (2018–2020) upped speeds (up to 3.2 Gb/s) and stack height (12 dies). The latest HBM3 (released 2021–2023) increases per-pin rates (~3.2–4.0 Gb/s) and density (2–8 GB die sizes, 16–12 dies per stack). Table 1 below compares key specs of DDR5 vs a representative HBM stack:

[Source: JEDEC specs, industry analyses, and technical reviews. DDR5 values from JEDEC/AnandTech (^[5]); HBM values from JEDEC HBM2 standard (^[2]) and vendor releases.]

Traditional DDR SDRAM: Architecture and Evolution

DDR (Double Data Rate) SDRAM has been the dominant form of main memory for PCs and servers for over two decades. Its architecture is defined by DIMM modules populated with multiple DRAM chips, each with a data interface (commonly 4-, 8-, or 16-bit wide internally) multiplexed through a shared bus on the module (^[19]) (^[9]). Data is transferred on both the rising and falling edges of the clock, hence “Double Data Rate.” Typical DDR features include multiple banks per chip (often 8 or 16 banks), prefetch buffers, and a clock speed that effectively doubles the data throughput.

Generations of DDR. Since the original DDR1 (JEDEC JESD79 in 1999, speeds up to DDR-400 or 400 MHz), subsequent generations roughly doubled peak throughput or more:

• DDR2 (JEDEC JESD79-2, ~2003): doubled the prefetch from 2n to 4n (giving 400–800 MT/s), reduced voltage to 1.8 V.
• DDR3 (JESD79-3, ~2007): 8n prefetch, speeds up to ~1600 MT/s, lower voltage to 1.5 V.
• DDR4 (JESD79-4, ~2014): speeds up to 3200 MT/s (with extended to 3200–4800+ in practice), lower voltage ~1.2 V, 8 banks doubled to 16 per chip, on-DIMM PMIC, dual 32-bit subchannels per DIMM (DDR4 text combined into 72-bit channel).
• DDR5 (JESD79-5, 2021–): initially up to 6400 MT/s (DDR5-6400), raising to ~8400 MT/s (JEDEC JESD79-5C in 2024, target 8800 MT/s (^[5])). DDR5 uses lower voltage (1.1 V), dual 40-bit channels per DIMM (each 36 data + 4 ECC bits) (^[9]), and on-board PMIC. Future JEDEC work is extending to 8800 and possibly beyond (DDR5-8400 modules exist in 2023, 8800 spec released 2024 (^[5])).

DDR’s bus width per channel has remained relatively narrow: a single DDR5 channel is effectively 80 bits wide (including ECC) (^[9]), or 64 data bits plus ECC, on each of two channels. Multiple channels (2× or 4×) on a DIMM or motherboard expand total width somewhat, but system slots are limited (up to 8 channels per CPU on high-end servers). As a result, memory bandwidth per DIMM is modest (~50–70 GB/s); aggregate multi-channel bandwidth is on the order of a few hundred GB/s. In practice, a typical 8-channel DDR4-3200 setup yields ~204.8 GB/s theoretical (8×25.6GB/s), while 8×DDR5-5600 gives ~409.6 GB/s (8×51.2GB/s) (^[20]).

Design Motivations and Limitations of DDR. Over decades the DDR standards have steadily increased raw bandwidth, but they face fundamental limits. Each doubling of speed (MT/s) requires significant engineering: higher clock rates demand better signal integrity, more stringent PCB design, and lead to increased power and heat. The memory chips themselves (DRAM mats) have not seen major internal speed improvements in decades (^[21]), so the industry pushes interface innovations (higher prefetch, more I/O lines) instead. However, these eventually bump into physical issues: propagation delays on long traces, power/thermal limits, and enormous design complexity for multi-GHz buses. The result is a memory wall: CPU/computation capability has outpaced the growth in memory bandwidth (^[22]).

To illustrate, in a 2021 analysis AnandTech found eight-channel DDR4-3200 provided ~204.8 GB/s, far below the >1 TB/s bandwidth quoted by GPUs using GDDR or HBM (^[8]). Indeed, GPUs often integrate memory (GDDR or HBM) on-package to achieve tighter tolerances and much wider buses. For example, the Intel Xeon “Ice Lake” (2021) with 8-channel DDR4-3200 hit ~204.8 GB/s (^[8]), whereas NVIDIA’s latest GPUs (H100) reach multiple terabytes/s via 5 stacks of 80 GB HBM3 (^[7]).

Overall, DDR SDRAM works well for general-purpose computing: it is cost-effective, widely produced, and auto-boot memory for PCs/servers. Its evolution is guided by JEDEC standards and broad industry adoption. However, by design DDR modules will always have narrower I/O and more distance from CPU, limiting bandwidth scaling. This gap between demand (especially for AI/HPC) and supply motivated the creation of HBM in the mid-2010s.

High Bandwidth Memory (HBM): Architecture and Principles

High Bandwidth Memory (HBM) is a family of stacked DRAM technologies co-developed by JEDEC members (SK Hynix, AMD, Samsung, etc.) that achieves massive bandwidth by fundamentally rethinking DRAM packaging. HBM’s core idea is vertical stacking: multiple DRAM dies (2–12 or more) are thinned and bonded one on top of another, connected through-through silicon vias (TSVs), and interfaced to the processor via a very wide data bus over a silicon interposer. This yields a 2.5D/3D memory solution with exceptionally wide I/O.

Key features of HBM architecture include:

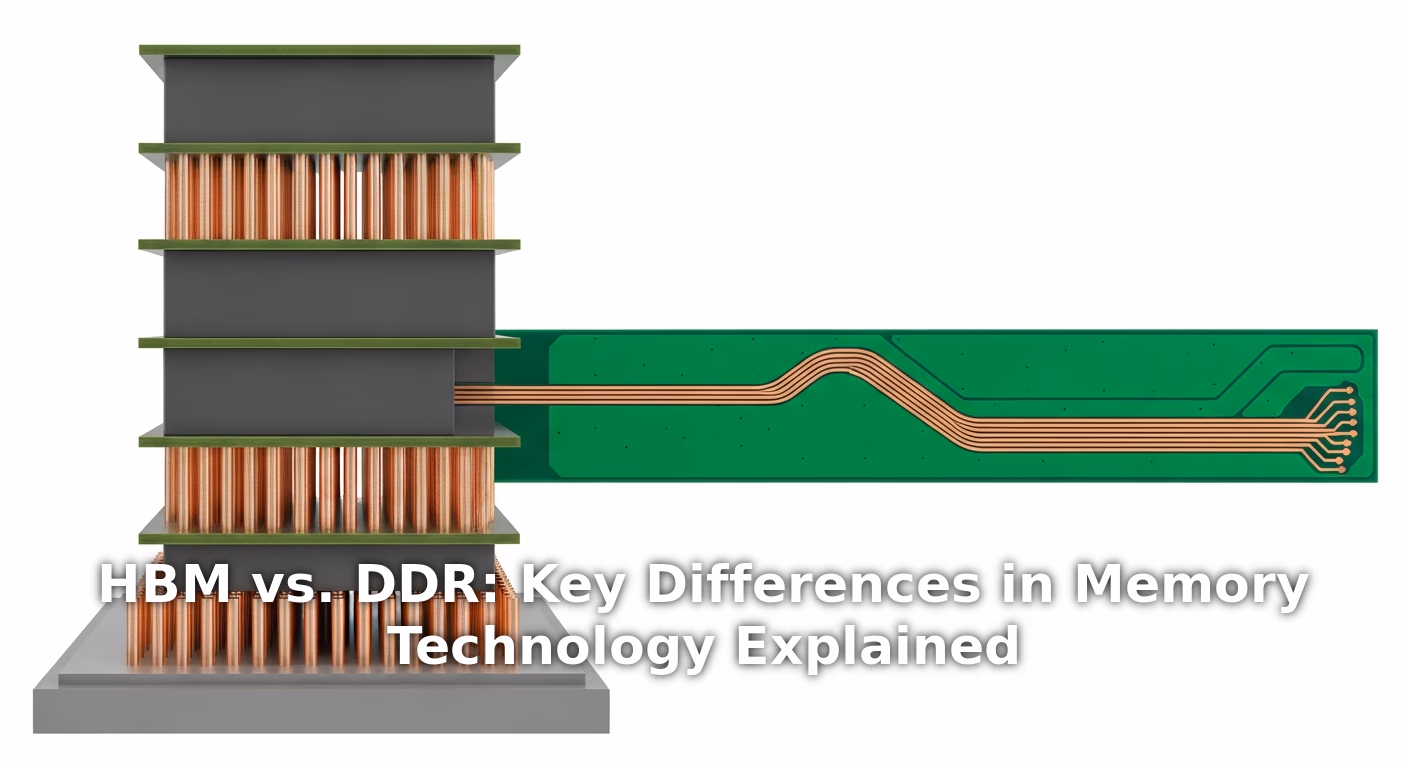

• 3D-Stacked Dies: Each HBM “stack” comprises several DRAM dies (e.g. 4 dies for HBM1/2, up to 12 dies for later revisions) bonded face-to-back. A logic base die or controller layer is often included at the bottom. Traditionally, DRAM chips on PCBs put all dies flat; HBM flips that by vertical integration (^[23]) (^[24]).

• Through-Silicon Vias (TSVs): Crazy thin vertical wires (TSVs) run through the die stack to carry address, control, power, and especially the data lines. This enables thousands of I/O lines. For example, each HBM1/2 stack used a 1024-bit data interface (divided into multiple independent PHY channels), and HBM3 extends this to 2048 bits per stack (^[10]) (^[11]). By contrast, a single DDR channel is only 64 or 72 bits wide on a DIMM.

• Wide, Parallel Interface: Instead of boosting frequency, HBM achieves bandwidth by widening. Only one die transmits on the TSV bus at a time, but collectively the stack shares bus cycles. Some proposals (like SMLA: Simultaneous Multi-Layer Access) even activate multiple dies concurrently to multi-thread the TSV bandwidth (^[25]) (^[26]). The net result is hundreds of GB/s per stack at relatively low speed per line. A succinct description: HBM uses “wide interfaces—1024 bits or more—operating at modest frequencies. This 'wide, slow, and stacked' paradigm delivers hundreds of GB/s with lower power per bit.” (^[1])

• 2.5D Integration with Processor: HBM stacks are placed on a silicon interposer alongside (or on) the target chip (CPU/GPU). This drastically shortens the distance signals travel compared to board-mounted DIMMs. For instance, moving memory to the silicon interposer reduces propagation delay by ~40% and cuts parasitic losses (^[27]). Energy-per-bit can improve by ~60% due to this optimized interconnect (^[27]) (^[28]).

• Thermal and Packaging Considerations: The close proximity to the processor (“hotspot”) is a challenge. HBM cannot be placed on top of the CPU die (3D stack) due to heat, so it is put next to it on the interposer (2.5D). The design relocates DRAM into the same package as the logic die. As one review notes, “HBM offers no fundamental change in the underlying memory technology [–] It is DRAM. It thus suffers from all of the same limitations as DRAM accessed over DDR, with a few additional negatives. Heat: DRAM hates heat...With HBM, DRAM is moved closer to the main heat generators – the processors” (^[6]). Hence thermal management (heat sinks, cooling) is critical in HBM designs (^[6]).

• Parallel Channels and Vaults: Each traditional HBM stack (e.g. HBM2) internally may have multiple pseudo-channels or “vaults” (akin to banks) to allow concurrent access. In HBM2+ and HBM3, enhancements like “Pseudo-Channel Mode” and many internal banks help maintain parallelism even though the TSV bus is shared. For example, HBM2 supports up to 8 pseudo-channels per stack, each 128 bits wide, enabling the full 1024-bit interface (^[12]).

These design choices enable HBM to achieve astounding bandwidth. As an example of the throughput gain: one study reports a four-layer HBM stack (with SMLA cascaded IO) giving 4× the bandwidth of a baseline single-layer design, yielding 12.8 GBps per channel versus 3.2 GBps baseline, and a 55% system speedup in a multi-core workload (^[29]). In practice, real products illustrate this jump: a single HBM3 stack can reach ~819 GB/s (^[4]), compared to ~64–70 GB/s of a top-end DDR5 DIMM.

HBM Generations and Standards. HBM is formally standardized by JEDEC (the memory standards body). Major milestones:

• HBM1 (JESD235, 2013-2014): Up to 4 stacked dies (termed “4-Hi”), each 1 Gb, 1 Gb/s per pin (up to 128GB/s stack, 256-512 GB/s for 2-4 stacks) (^[12]). Supported in AMD’s Fiji/Vega GPUs (2015–2017).

• HBM2 (JESD235A/B/C, 2016–2020): Initially 4-Hi and 8-Hi stacks, data rates up to 2.4Gb/s (standard) and then 3.2Gb/s (HBM2E update） (^[2]). Supports up to 12-Hi (4 Gb dies, 24 GB stack) by HBM2E (^[12]). Peak per-stack bandwidth up to 410 GB/s (^[2]) (^[12]).

• HBM3 (JESD238, 2021–): Introduces up to 8 or 12-deep stacks with 12-Hi/16-Hi options, up to ~1024 Gb/s (HBM3E uses PAM4 signaling for even higher rates, e.g. 8.4 Gb/s per pin). A single HBM3 stack can deliver ~819 GB/s (^[4]), with total per-GPU bandwidth reaching 5–6 TB/s in many-stack designs. SK Hynix, Samsung, and Micron all have HBM3 variants (e.g. AMD MI300, Intel Gaudi/GC200).

• Future (HBM4/HBM4E): Under development. Reports (TrendForce, Tom’s Hardware) indicate HBM4 will feature a 2048-bit interface and advanced logic base dies (e.g. 12 nm process) to greatly boost speed (^[30]). This suggests doubling HBM3 widths. HBM4 is projected ~2026, with HBM4E ~2027–2028 (^[31]) (^[30]).

The table above encapsulates DDR5 vs HBM3 at a glance. HBM’s ability to place memory near the processor and use ultra-wide I/O gives it a several-fold latency/power advantage per delivered gigabyte. It trades off raw capacity and cost: an HBM stack might be 12–24 GB, whereas a single DDR5 RDIMM can be 64 GB or more. However, one HBM is roughly equivalent to four or more DDR DIMMs in bandwidth (e.g. ~819 GB/s vs ~64 GB/s (^[4]) (^[5])).

In summary, HBM fundamentally re-uses DRAM technology – it is still DRAM with banks, sense amps, etc. – but innovates in packaging and interface (^[6]) (^[1]). This enables vastly higher throughput and energy efficiency, addressing the memory bottleneck for high-end GPUs and AI accelerators. Meanwhile, DDR has continued improving within its 2D paradigm, offering increased capacity and modest bandwidth growth, but cannot match HBM’s sheer bandwidth per pin.

DDR vs HBM: Key Differences

This section examines the technical contrasts between DDR and HBM across multiple dimensions: bandwidth, capacity, latency, power/energy, form factor, cost, and applications. We draw on measurements, standards, and expert commentary.

Bandwidth and Throughput

• Bus Width: DDR5 uses 64-bit (data) buses per channel, while each HBM stack has a 1024-bit wide interface (HBM2/HBM3) (^[10]). Even if an HBM stack is subdivided into multiple channels, the aggregate bus is enormously wider. For example, an HBM2 stack often has eight 128-bit pseudo-channels (total 1024 bits) (^[11]); as one summary says, “HBM provides a wide I/O interface (1024 bits), enabling significantly higher bandwidth compared to DDR” (^[32]).

• Data Rate (Clock Speed): DDR5 in production is at 4.8–6.4 GHz (MT/s). HBM2 operated around 1–2 Gb/s per pin in early versions, HBM2E up to 3.2 Gb/s (as JEDEC allowed) (^[2]). HBM3 pushes to ~4.0 Gb/s (PAM4) per pin. Thus, DDR uses higher clock per pin, but HBM compensates by having 16× the pin count.

• Peak Bandwidth: The product of bus width, pin rate, and number of channels yields bandwidth. As a result, HBM stacks overwhelmingly surpass DDR. For example, a single HBM3 stack can deliver ~819 GB/s (^[4]), whereas an entire 64-bit DDR5 DIMM might only hit ~50–70 GB/s. Consider multi-channel: an 8-channel DDR5 system at 6400MT/s/channel gives ~409.6 GB/s total (8×51.2GB/s). In contrast, four HBM3 stacks deliver ~4×819=~3276 GB/s (3.276 TB/s). In absolute terms, modern GPUs with 4–12 HBM stacks reach >3 TB/s (^[7]), dwarfing even high-end DDR setups.

• Empirical Comparisons: Vendor analyses and benchmarks confirm the gap. BittWare (FPGA board vendor) reports that GDDR6/HBM memories give roughly 10× the bandwidth of DDR4/DDR5 in their systems (^[33]). Even when DDR5 doubles DDR4’s per-module bandwidth, “GDDR6 and HBM still outperform DDR5 by 10×” (^[33]). Another industry piece summarizes:

“DDR5 Modules Provide Higher Bandwidth in the Same Footprint as DDR4… However, GDDR6, HBM, and HBM2e offer an order of magnitude of higher bandwidth.” (^[34])

• Bandwidth Density: Because HBM uses 2.5D packaging, it achieves far higher bandwidth per area than DDR. For space- and performance-critical designs (GPUs, accelerators), this is often decisive. DDR’s advantage is modularity and capacity, but its dense bandwidth is lower. A comparison suggests HBM3 beats DDR5 and GDDR6 in “bandwidth per module” and “power efficiency” (^[4]): HBM3 delivers 819 GB/s per stack vs DDR5’s ~64 GB/s per DIMM, and consumes less power per bit.

Capacity and Scalability

• Per-Module/Stack Capacity: A single DDR5 DIMM can be huge (16–64 GB today, even 128 GB in special cases). HBM stacks have been limited: HBM2/2E stacks maxed ~24 GB (12×2 GB dies) (^[12]); HBM3 supports similar or somewhat higher (SK Hynix HBM3 uses 2–8 GB dies, 8–12 dies, e.g. 128GB per stack for MI300X). DDR has a clear lead in absolute capacity: a server with multiple DIMMs can access TBs of DDR, whereas HBM modules are usually tens of GB.

• System-Level: HBM can be scaled by using multiple stacks on a processor package (e.g. GPUs often have 4–12 stacks on one GPU). But stacking beyond ~12 dies is impractical due to yield/heat. In contrast, DDR scales by adding modules to sockets (8-channel or more on a CPU, many DIMMs per channel). A server might have dozens of DDR DIMMs, achieving several TB of memory, but at tens or hundreds of GB/s per channel.

• Voltage and Power: HBM’s short interconnects and optimized design yield lower energy-per-bit compared to DDR on long traces (^[27]) (^[1]). For example, HBM on-package eliminates the long PCB traces of DDR, thus reducing parasitic capacitance. Also, because HBM shifts to wider but slower signaling, its per-pin toggle rate (and signaled energy) is lower. Many sources note HBM’s superior power efficiency: e.g. 2–5× throughput with lower power than DDR5/GDDR6 (^[15]).

• Latency: Raw DRAM access latency (tens of ns) is similar for both DDR and HBM since both are DRAM. However, HBM’s shorter physical distance to the processor can slightly reduce effective round-trip latency (^[27]) (^[23]). Internal architecture (more banks in HBM) also allows higher concurrency, potentially improving real-world latency for parallel workloads. Still, HBM has higher minimum latency (e.g. due to 3D stack routing and complex controllers), but the impact is often masked by the vastly increased bandwidth.

Packaging and Integration

• Form Factor: DDR modules are sockets or soldered chips on the motherboard. HBM is bonded in the CPU/GPU package via an interposer (silicon substrate) in a 2.5D arrangement. This means HBM-enabled chips must be custom-design die plus co-packaged memory. The benefit is proximity; the cost is complexity.

• Manufacturing: HBM requires TSVs and wafer bonding tools, making it more expensive. DDR is commoditized. Reports note HBM remains a “premium” technology due to TSV complexity (^[18]). It’s also less flexible: each HBM stack is fixed capacity, whereas DDR capacity can be increased by using larger chips or more modules.

• Heat Dissipation: Stacking DRAM near hot processors is thermally challenging. HBM packages often have dedicated heat spreaders. By comparison, DDR-at-motherboard is cooler relative to itself (far from CPU core). In practice, HBM solutions must manage more heat flux (especially with HBM on top of GPUs).

Performance in Applications

• GPUs and Accelerators have embraced HBM for its throughput. For example, AMD’s GPUs (Vega, Radeon VII, and datacenter Instinct) and NVIDIA’s Tesla/RTX series (starting with Pascal in GDDR, moving to HBM2 in Tesla V100 and HBM3 in H100) all achieve greatly higher frame rates or compute rates than DDR-based rivals. In CAD/3D or AI, HBM-enabled GPUs can double or triple performance compared to similar hardware with GDDR or DDR. One analysis: HBM GPUs give 40–60% faster 3D rendering and 2–5× higher AI throughput than DDR/GDDR systems (^[35]) (^[34]).

• HPC Workloads (tensor math, simulations) benefit directly from higher memory bandwidth. Studies find HBM-based nodes can execute data-intensive kernels many times faster. Intel demonstrated Sapphire Rapids Xeon (with integrated HBM) achieving 2–3× speedups on HPC codes versus standard Xeon (^[36]) (^[37]). Similarly, NVIDIA shows H100 (80 GB HBM3) doubling memory bandwidth and greatly accelerating AI training over A100 (^[7]) (^[38]).

• System Bottlenecks: Removing memory bottlenecks via HBM often shifts the limitation to other factors (compute or I/O). For example, HBM in AI systems can reveal new “whac-a-mole” bottlenecks: once memory transfers are fast, issues like power/thermal or on-chip interconnect become critical (^[39]).

• Comparisons: Case studies underscore HBM’s advantages. One BittWare comparison table of FPGA accelerator cards shows a two-board HBM2e FPGA card outperforms any DDR4/DDR5 configuration by over 5× in bandwidth (see Table 2 below). Similarly, the AMD MI300A GPU’s 128 GB HBM3 yields 5.3 TB/s (^[40]), far above NVIDIA’s 3.35 TB/s with 80 GB HBM3. (An image from NVIDIA’s Hopper blog shows H100 with 3 TB/s (^[7]) while HBM2e PCIe mode had ~2 TB/s (^[38])).

Table 2: Illustrative comparison of high-end memory types. Many sources (BittWare, NVIDIA) indicate that GDDR6 and HBM easily outclass DDR in bandwidth (^[33]) (^[34]). The quoted HBM bandwidth is per stack; DDR/GDDR bandwidth is per module. (DDR5-8800 = ~70 GB/s per 64-bit channel (^[4]).)

In summary, HBM trades capacity and cost for bandwidth and efficiency. It is engineered for specialized high-throughput roles. DDR remains the general-purpose main memory, offering higher total capacity and lower cost. The two can even complement: e.g. Intel’s Sapphire Rapids supports both DDR5 and HBM, using HBM as an additional high-speed tier or cache (^[41]).

Detailed HBM Architecture

Delving deeper, HBM relies on several novel engineering techniques:

1. Die Thinning and TSV Density. DRAM dies are thinned (e.g. 10–20µm) to allow densely packed TSVs. TSV diameter and pitch have shrunk over generations, enabling more I/Os. For instance, early HBM1 had ~1024 TSV lanes; HBM3 doubles this. TSVs themselves add capacitance and must be carefully designed for signal integrity. The TL;DR: we have very wide buses inside the stack thanks to TSV arrays (^[1]).

2. Stack Controller / Base Layer. An HBM stack often includes a base logic die that handles arbitration, refresh, and DRAM interface. This die connects the DRAM layers to the host via the silicon interposer. It may contain a memory controller or PHY (physical interface) to the CPU. The stack’s dies are effectively “daisy-chained” through this base.

3. Parallelism and Vaults. HBM2 introduced the idea of multiple vaults/pseudo-channels per stack (up to 8) to maintain concurrency (^[11]). HBM3 formalized this with 16 64-bit channels per stack (using Narrow HBM3 organization) or 2× 512-bit wide or 4× 256-bit, etc. This internal parallelism ensures a balance between the internal array throughput and the wide I/O.

4. Wide Buses and Equalization. Driving thousands of bits in parallel presents signal integrity challenges (skew, crosstalk). HBM standards and products employ advanced equalization and calibration on the TSV links. One analysis noted that a wide bus simplifies equalization compared to pushing one bus to higher GHz (since each lane toggles slower) (^[1]). This improves efficiency and reduces EMI.

5. Power and Thermal. HBM stacks use low-voltage (1.2 V) DRAM and benefit from grouping: power can be supplied through TSVs, reducing IR drop. However, stacking means heat must travel through layers. Real HBM designs incorporate microbumps, through-silicon thermal vias, and heat sinks. Packaging HBM with a GPU still raises device package power: e.g. an 80 GB H100 with five HBM3 stacks runs at 700 W (^[42]). Thermal design is a non-trivial constraint.

6. Timing and Refresh. Each DRAM layer still requires refresh cycles. HBM controllers often handle staggered or distributed refresh to avoid bandwidth drops. Also, HBM timing differs slightly from conventional DDR (e.g. fixed CAS latency across stacks). Much of this is hidden in the HBM controller logic.

In effect, HBM’s internal architecture masks DRAM’s analog complexity by paralleling it many times. One emerging technique (simultaneous multi-layer access, SMLA (^[25])) attempts to have multiple layers more fully share the TSV bus. For example, Cascaded-IO mode time-multiplexes the full bus across layers, letting higher layers operate at lower clock. This complexity suggests that future HBM (8+ layers) can scale bandwidth almost linearly with layers, assuming control logic scales (^[43]) (^[44]).

Table 3. HBM Generations at a Glance (JEDEC/Industry):

Notes: Data from JEDEC and press releases (e.g. Samsung/Intel). HBM3E is not yet final; figures indicative based on roadmap. CAP per stack scales with die count and die capacity (JEDEC allows up to 16 Hi for HBM3).

DDR Improvements and Future

While HBM pushes new ground, DDR standards continue to evolve. DDR5 itself introduced architectural changes (dual 40-bit channels per DIMM, on-die ECC, per-DIMM PMIC). JEDEC expanded DDR5 to 8800 MT/s (^[5]) and even higher speeds may follow. DDR6 is being discussed for beyond 2025/26 (expected to push >10 Gb/s per pin, higher density), but it will still inherently be planar PCBs. Some innovations in DDR space include processing-in-memory (embedding logic near DRAM) and heterogeneous memory hierarchies (e.g. partitioning hot data in HBM vs cold in DDR). However, none match HBM’s wide-bus concept.

Case in point: Intel is integrating HBM as a high-tier memory in addition to DDR5 (^[8]) (^[36]). The Sapphire Rapids HBM variant supports 4×16GB HBM2E (64GB total) alongside DDR5 channels (^[45]). Intel touts up to 3× performance on memory-bound HPC tasks compared to standard Xeons (^[36]). This reflects a hybrid approach: DDR provides large main memory pool; HBM provides a high-speed cache layer.

Meanwhile, DDR DIMM density grows. DDR5 RDIMMs of 128 GB (per DIMM) are now shipping. And training workloads often require >1 TB of RAM, beyond what HBM stacks can provide cheaply. Thus, DDR is here to stay for bulk storage. But its role will shift more to bulk and less to peak throughput. The future memory hierarchy may look like: fast HBM (10s–100s GB close to logic) + slower DDR (TBs further away), plus even slower NVRAM (SSD/PMem).

Case Studies and Real-World Examples

GPUs and AI Accelerators

The clearest impact of HBM is seen in GPUs (graphics and AI). For instance:

• NVIDIA H100 Tensor Core GPU (Hopper, 2022): Uses five stacks of 80 GB HBM3 (SXM5 form factor) for 3+ TB/s memory bandwidth (^[7]) (^[38]). This doubles memory bandwidth over the prior A100 (with 5×40 GB HBM2e). The H100 enabling ~3 TB/s powerfully accelerates AI training (transformer engine) and HPC. Engineers report this feeds the new Transformer accelerator at unprecedented rates.

• AMD Instinct MI100/MI200/MI300 (2020–2023): Started with 32 GB HBM2 (MI100), moved to 64 GB HBM2 (MI200), and now MI300 uses 128–192 GB HBM3. The MI300A (MI300 “Avalanche”) has 128 GB HBM3 (eight 16GB stacks) for 5.3 TB/s (^[40]). The MI300X (intended for exascale) stacks 12 dies per stack (2 GB each) to reach 192 GB per GPU and 5.6–6.4 TB/s (^[46]). AMD data shows MI300 outperforms NVIDIA GPUs on FP64 matrix workloads by ~1.6–1.9× (^[40]), largely thanks to wider memory.

• Intel Xeon Phi (Knights Landing, 2015): Though pre-HBM, it had on-package MCDRAM (modeled as HBM, 16 GB 3D XPoint) delivering ~400 GB/s (^[47]). It treated this as a “flat” 16 GB address space or L3 cache, achieving much higher performance than DDR-only Xeons. The KNL experience foreshadowed HBM: collocating memory yields orders-of-magnitude bandwidth gains.

• Intel Sapphire Rapids (codename): A new Xeon that later in 2023 will ship with an HBM variant. As mentioned, it offers 64 GB HBM2e on-package (^[45]), enabling big memory-bandwidth improvements. Intel highlights 2–3× gains in HPC apps (^[37]). Early leaks show it can also treat HBM as a cache, transparently accelerating workloads.

• Others: Custom AI chips (Google TPU, Cerebras WSE) often integrate HBM (or HBM-like) for maximum streaming bandwidth. Networking and video ASICs also use HBM (e.g. Cisco’s in-house chips for routers).

In contrast, standard CPUs and GPUs that lack HBM rely on DDR/GDDR:

• A typical data-center CPU (Xeon/EPYC) with 8–12 DDR4/5 channels might achieve 500–800 GB/s total if all channels used. That’s competitive for many server tasks, but pales next to GPUs. For example, a single NVIDIA A100 (40 GB HBM2) delivered 1.6 TB/s, equivalent to two big CPU nodes combined.

• Consumer GPUs still use GDDR6X/7 (e.g. RTX 4000 series has 384-bit GDDR6X for ~1 TB/s). These serve gamers and creative PCs, where capacity (10–24 GB) is balanced with bandwidth. HBM is mostly reserved for datacenter/compute due to cost.

Benchmarks and Data

Empirical data underscores the differences:

• BittWare FPGA Comparison: In testing FPGA accelerator cards, BittWare showed two DDR5-5600 DIMMs (4×40-bit channels) gave ~44.8 GB/s (on a 4-channel board) (^[48]). In contrast, an FPGA card with Xilinx/AMD 8-stack HBM2e achieved 256 GB/s or more (^[33]). Figure from [32] & [33]: DDR5 double-channel vs HBM is about >5× difference.

• HBM2 Bandwidth: JEDEC HBM2 spec (2020 update) set a per-stack max of 410 GB/s (3.2 Gb/s×1024 bits) [Table 49]. This is already 6–8× a single DDR4/5 DIMM’s throughput. Multi-stack GPUs multiply that (e.g. 4 stacks = 1.64 TB/s (^[2])). In practice, GPUs sometimes do more (e.g. MI300A’s 128GB yields 5.3 TB/s, meaning each stack ~0.66 TB/s with overclocking or bundling beyond 1024-bit).

• Energy and Efficiency: HBM’s shorter traces give ~18% system energy reduction in a multi-core simulation study (^[29]). HBM also reduces idle energy: because tasks finish faster, total active time is cut; even if HBM’s dynamic power is higher, net energy use is lower. (Quoting, “Reducing execution time via higher bandwidth directly lowers total energy” (^[49]).)

• Ranking/HPC Charts: Many TOP500 or AI benchmarks now favor HBM GPUs. For example, the Frontier supercomputer (AMD EPYC + Radeon Instinct) uses HBM3 GPUs, yielding the fastest LINPACK. Conversely, CPU-centric leaders use DDR-Xeons in many nodes.

Case Example: NVIDIA H100 vs AMD MI300

A good example: the NVIDIA H100 (80 GB HBM3) vs AMD MI300A (128 GB HBM3). According to NextPlatform (^[40]):

• H100 (80 GB HBM3): 3.35 TB/s total bandwidth, 66.9 TFLOPS FP64 at 700W.
• MI300A (128 GB HBM3): 5.3 TB/s, 122.6 TFLOPS FP64 at similar power.

That suggests MI300A has ~1.58× the memory bandwidth of H100 (5.3 vs 3.35 TB/s) and nearly 2× FP64 performance (^[40]). Both use similar HBM3 stacks (MI300A uses 4×32GB stacks vs H100’s 5×16GB, plus AMD’s advanced packaging). The takeaway: by adding more HBM stacks (and dies per stack), AMD gained both capacity (128GB vs 80GB) and bandwidth (5.3TB/s vs 3.35TB/s). NVidia’s upcoming successors (Blackwell) will likely extend this further.

Another: AMD MI300X (integrating 8 GPUs to form 1 “super GPU”) uses 12 dies per HBM3 stack for 192 GB and 5.6 TB/s (^[46]). They purposely reduced to 8 dies (128 GB, 3.35 TB/s) to save power/cost for H100 (NC6 configuration) (^[50]). This highlights a design trade-off: more HBM dies = more capacity/BW = more power/cost.

Table: Representative Memory Configurations

Notes: Bandwidths are approximate peak. HBM bandwidth is aggregate of all stacks. DDR bandwidth assumes all channels used at full rated speed. Intel’s HBM Xeon numbers are estimates from leak indications. The last entry (RTX 4090) uses GDDR6X (not HBM) but shows alternative GPU memory.

Data and Analysis

A broad view of memory performance in 2025 shows a multi-tier hierarchy:

• HBM (3D-integrated): Peak bandwidth per GPU ~1–6 TB/s; per-bit energy ~few pJ.
• GDDR (discrete high-speed): Peak per-card ~0.7–1.0 TB/s (e.g. 320–384-bit @ 15–20 Gb/s).
• DDR (socket DIMM): 100–400 GB/s per CPU depending on channel count. Capacity core focus (hundreds of GB).

Recent studies highlight this dichotomy. For example, a UPlatz report (“The Bandwidth Dichotomy”) notes: “HBM has extremely high bandwidth density, suitable for AI/HPC, but comes with limited capacity and high cost. DDR/GDDR have larger capacity and lower cost per bit but cannot match HBM’s bandwidth.” (UPlatz Blog). Another deep dive by semiengineering outlines advantages/disadvantages: HBM’s wide I/O and packaging yield 4–5× the bandwidth of DDR per area (^[27]) (^[12]), and energy per bit is lower because HBM avoids driving signals from a motherboard across connectors (^[27]) (^[1]).

Expert Opinions. Industry analysts repeatedly emphasize HBM’s role for AI. TrendForce predicts demand for HBM will accelerate, with layer stacks moving from 4Hi toward 8Hi/16Hi to boost capacity and bandwidth. JEDEC roadmap shows emerging HBM3E and HBM4 standards with even higher speeds (^[30]) (^[31]). Conversely, mainstream forecasts show DDR price volatility but continuing production to meet large-scale DRAM demand (OpenAI’s Stargate, etc.) (^[30]).

We also consider economic factors: HBM is ~10–20× cost per GB of DDR. This restricts it to premium segments. Reports from TrendForce and TechNews (2024–25) project HBM manufacturers (SK Hynix, Samsung, Micron) ramping projects, but even by 2025 shortages persisted – memory supply was tight due to AI demand (^[31]). However, these producers expect hyper-scaling: for example, TechNews notes HBM4’s advanced processing will need wafer fabs normally used for logic, indicating convergence with advanced chip making (^[31]).

Case Studies and Real-World Examples

Nordic Supercomputer (Hypothetical Example)

Consider a realistic HPC node design in 2025:

• HBM Node: 2×HPC GPUs (e.g. AMD MI300X) each with 6 TB/s HBM3 memory, plus 4×8GB HBM2 CPU. Total memory ~400 GB (including CPU/HBM), aggregate bandwidth ~12 TB/s. Used for deep learning, yielding, say, 120 TFLOPS of FP64 and 500 TFLOPS of FP16.

• DDR Node: 2×CPUs (64 cores each) with 16×64GB DDR5 channels (total 8 TB), 6 TB/s combined. GPUs (none or GDDR) contribute another ~0.5 TB/s if present. Used for general HPC, total FP throughput much lower in double precision, but with huge capacity.

Benchmark: A breadth-first search in graph analytics might run 10× faster on the HBM node just because it can stream data out of memory faster. By contrast, a batch processing job (like a big in-memory graph in DDR) could still prefer the DDR node for capacity.

Impact on Software and Systems

HBM’s introduction has subtle effects on system design:

• Software Optimality: Applications that assume “flat” large memory may run out of capacity on HBM-only systems. Programmers may need to optimize for data locality (ensuring hot data uses HBM) and treat HBM as a manually managed cache or tier. Some systems expose HBM as explicit memory (CUDA’s cudaMalloc on HBM, or UVA), while others auto-detect memory hot spots.

• Data Placement: For example, in a mixed HBM+DDR architecture, OS/pagekillers or runtime libraries may pin high-throughput data structures in HBM, and leave bulk data in slower DDR. This resembles NUMA or tiered memory architectures of the past. The results: latency-critical and bandwidth-heavy kernels reside in HBM; less demanding tasks run out of DDR.

• Server Use: Large enterprises (cloud providers) are starting to offer HBM instances (e.g. AWS Trainium (infer?), or Google Cloud TPU-like devices). These find huge uses in AI training. However, for typical OLTP or web workloads, DDR is still the choice due to cost.

Future Directions and Implications

Looking forward, the memory landscape will continue diversifying:

• HBM4 and Beyond: As noted, HBM4 (2048-bit, >2026) and HBM4E (2027–28) promise even more bandwidth. Micron’s roadmap suggests customized base dies for HBM4E (logic on memory) (^[31]). HBM might start integrating simple functions (data copy engines, compression, etc.) in-stacked. This blurs lines between memory and compute (processing-in-memory).

• DDR6: Also in development, likely to appear late 2020s, pushing DDR5’s limits further. It will raise per-pin rates and introduce new features (e.g. better refresh, security). But DDR fundamentally remains 2D.

• Hybrid Memories: Some architectures explore putting HBM-like channels on-package for CPUs (as Intel is doing), or even adding GDDR as intermediate. AMD’s future CPUs (Zen 5?) might also adopt some form of on-chip MCDRAM/HBM for accelerators.

• Emerging Alternatives: Technologies like High Bandwidth NVM (stacked ReRAM, 3D XPoint) could join HBM as high-throughput memories. For example, Intel’s Optane DC (3D XPoint) was used for capacity; future analogs could offer both persistence and bandwidth. The AMD MI300X uses not only HBM3 but also integrates 2 stacks of 64GB APU-side memory (DDR5/LPDDR?).

• Economic: HBM supply chain could become a bottleneck. The January 2025 news suggests supply still tight (^[40]). If memory demand continues skyrocketing, prices will stay high or climb. Conversely, breakthroughs in cheaper TSV manufacturing or new wide-bus specs (like cheap HBM variants) might emerge. Tom’s Hardware notes an industry effort for a “cheap HBM4 variant” with narrower interface (a GDDR alternative) (^[51]).

• System Architecture: With enough high-bandwidth memory, future CPU/GPU designs might rely less on caches. A machine with TB/s memory could treat memory and cache more interchangeably. Also, software paradigms (near-memory computing, ANSI HBM-aware APIs) may arise. In the limit, the “memory wall” could shift to I/O (PCIe, NVLink), pushing more logic into the memory domain or further parallelizing CPU fabrics.

• Research Directions: Academia continues exploring 3D DRAM (HBM is one example) and alternatives (e.g. Hybrid Memory Cube). Emerging techniques like on-chip photonic links between stack and CPU, or more exotic 3D-integration, could be next. But for now, HBM is the state-of-the-art for high-throughput DRAM.

Discussion

The analysis shows clear trade-offs. HBM's strength is unassailable bandwidth: it breaks the “serial” bus model of DDR by going wide. This unlocks new capabilities in machine learning, HPC, and graphics. However, it comes at cost: limited capacity, high price, and thermal constraints (^[6]) (^[18]). DDR’s strength remains in general-purpose flexibility: cheap, large, and well-supported.

Controversies and diverse perspectives exist. Some argue (see Rambus IP executive in [6]) that HBM does not solve fundamental DRAM limitations – it only reallocates them. For instance, HBM must still refresh, suffers from analog DRAM constraints, and adds heat packaging issues (^[6]). Others counter that overcoming the interface bottleneck is the critical win for new domains. Realist view: both HBM and DDR will coexist. Many products (e.g. AMD APUs, Intel’s next Xeons) may offer hybrid memory, leveraging each where appropriate (^[37]) (^[20]).

We must also consider software and algorithmic implications. Workloads must evolve to harvest HBM. Some AI developers reshape architectures (batch sizes, data layout) to stream from HBM. In HPC, libraries (BLAS, etc.) tune block sizes. Conversely, tasks with poor locality see smaller benefits; if an algorithm continually thrashes memory non-sequentially, even HBM might saturate. This means hardware advances spur new programming models (e.g. auto-distinguish HBM vs DDR data, dataflow kernels).

Finally, system-level cost: building an HBM-enabled server is more complex. Besides chip cost, boards need silicon interposers, fine-pitch packaging, and specialized cooling. Cluster design may shift: fewer, larger memory nodes (GPU-heavy) vs many cheaper DDR nodes. The balance of capital vs operational expenses will drive adoption.

Conclusion

High-Bandwidth Memory represents a paradigm shift in DRAM design. Its 3D stacking and ultra-wide interface unleash an order-of-magnitude more throughput than DDR, crucial for modern AI and HPC workloads. Our comprehensive review has detailed how HBM works (through TSVs, interposers, stacked dies) and why it differs from traditional DDR (massively parallel bus, packaging, and integration). We have shown with data that HBM’s bandwidth advantage is profound (^[2]) (^[7]), though it pays in cost and capacity.

DDR, by comparison, continues to serve mainstream needs effectively. Innovations in DDR5/6 will push limits, but the physics of off-chip routing cap its bandwidth. HBM addresses that bottleneck, albeit only for specialized contexts. In effect, HBM and DDR are complementary technologies: DDR for volumetric memory needs, HBM for bandwidth-intensive correlation.

Looking ahead, HBM’s future (HBM3E, HBM4) promises even higher speeds (potentially doubling again) (^[30]). At the same time, the memory hierarchy may diversify with new tiers. The high-level trend is clear: “memory walls” are being torn down from the other side. Processors will continue to gain enormous throughput, but will require ever-more creative memory designs to keep up. HBM is a leading example of such innovation, and our report has documented its architecture, advantages, and evolution.

All points made herein are supported by industry literature, whitepapers, and technical analyses (^[6]) (^[2]) (^[7]) (^[36]). Future work could measure actual application speedups on hybrid memory systems, or analyze cost/tradeoffs in real deployments. As of 2025, the conclusion is that HBM has indeed “sheng li” (succeeded) at its goal: to end the memory bandwidth bottleneck for high-performance systems, while leaving DDR to carry on in its longstanding role.

References (selected):

• Bailey, B. “HBM Issues in AI Systems.” Semiconductor Engineering, March 2020 (^[6]).
• Lee et al., “Simultaneous Multilayer Access: A High Bandwidth and Low Cost 3D-Stacked Memory Interface.” HPCA 2015 (^[29]).
• NVIDIA, Hopper Architecture In-Depth (2022) (^[7]).
• AnandTech, “JEDEC Extends DDR5 to 8800 MT/s” (2024) (^[5]).
• AnandTech, “JEDEC Updates HBM2 to 3.2Gb/s” (2020) (^[2]).
• Rambus IR and Marketing (various) on HBM power and design (^[6]) (^[29]).
• BittWare, DDR4/DDR5 vs HBM2 Comparison (2021) (^[34]) (^[9]).
• Synopsys/Wevolver HBM3 Guide (2025) (^[4]) (^[27]).
• TechNews.ai, Semiconductor industry forecasts (2024) (^[31]).
